Key Takeaways

A wireless site survey measures what actually happens to radio signals in your building, rather than estimating it from a drawing.
Coverage and capacity are different problems. A green heat map answers the first and says nothing about the second.
Match the survey type to the question: predictive to design, passive to diagnose, active to validate.
Judge a survey quote by its deliverables, especially whether a post-installation validation pass is included.
Survey before hardware. It is cheaper to move an access point in software than to re-run cable.

A wireless site survey is a measured assessment of how radio signals behave inside a specific building. It’s used to decide where access points go, how many you need, and which channels they should run on. It replaces guesswork with data collected on-site, in your walls, while your equipment is running.

The output of a survey most people recognize is the heat map: a floor plan washed in green, yellow and red. It looks obvious. It’s also the most misread image in commercial Wi-Fi. At ExcelLinx Communications, we survey buildings across Toronto and the GTA, and the single most common conversation we have is explaining that a floor plan covered in green doesn’t necessarily mean the network works.

What is a Wireless Site Survey?

A wireless site survey answers three questions: where the signal reaches, where it degrades, and what else is competing for the same airspace.

An engineer walks the building with a survey device and software, recording signal strength, noise, channel usage and interference at hundreds of points. The software attaches those readings to your floor plan.

The word “survey” makes it sound like a single activity. In practice, it covers several different measurements taken for different reasons, which is why two quotes for a “wireless site survey” can describe genuinely different work. Check out our guide to conducting an effective RF wireless survey for more on the methodology.

What Does a Wi-Fi Heat Map Show You?

A Wi-Fi heat map is a floor plan overlay that colours each area by a measured value. Nine times out of ten, that value is signal strength alone, which is exactly why so many heat maps get misread.

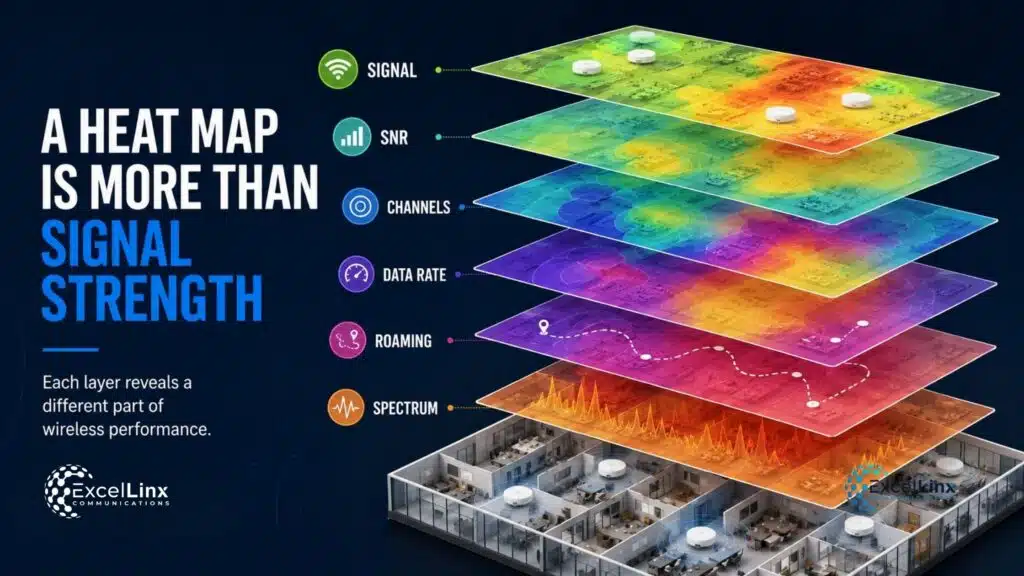

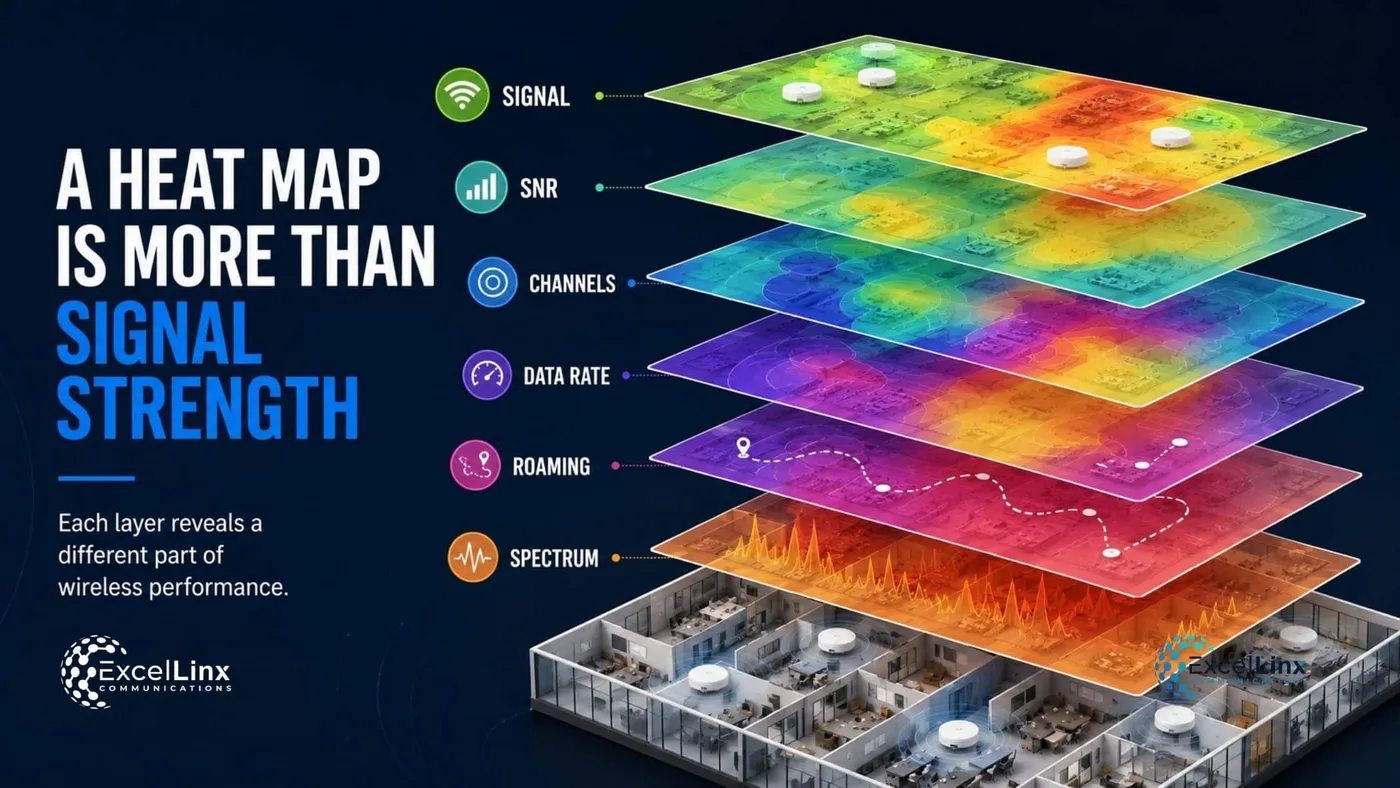

Signal strength is one layer. A survey produces several, and each one measures something different. Reading only the first is how a building ends up with good coverage and bad Wi-Fi.

Heat map layer	What it measures	What it shows	What it does not tell you
Signal strength (RSSI)	How strong the access point’s signal is at the spot where the reading is taken	Coverage reaches that area	Whether a device can get any real work done there
Signal-to-noise ratio (SNR)	Signal measured against background radio noise	The device can actually decode what the access point is sending	Whether there is free airtime to send it in
Channel overlap	How many nearby access points are sharing the same channel	Whether your channel plan is sane	Whether capacity is sufficient
Data rate	The speed the device and access point agree to use, which drops as signal weakens	Devices in that spot can move data at a useful speed	Whether that speed holds once the building fills up
Access points heard per location	How many access points a device can hear from that spot	The device has somewhere to roam to	Whether roaming is set up to actually use them
Spectrum analysis	Radio energy from sources that are not Wi-Fi at all	Whether something else is jamming the band	Anything about how your own network is set up

Data rate is the speed a device and an access point agree on before they exchange anything. It is negotiated, not fixed, and it falls as the signal weakens. A device three metres from an access point and a device at the far end of a warehouse are both “connected”, but one of them is moving data many times faster than the other.

Roaming is what happens when you carry a laptop or a scanner from one end of a building to the other, and it hands off from one access point to the next. A heat map can show that a device hears three access points from where it stands. It can’t show whether the network is configured to make that handoff happen quickly, which is why a warehouse can have full coverage and still drop a call every time someone walks through a doorway.

The practical version: a warehouse can show a strong green signal everywhere and still fail at 9 am, because forty scanners all associate to the same access point and there is only so much airtime to share. Coverage was never the problem. Capacity was.

Here’s the distinction that matters most: Coverage is whether a device can hear the network. Capacity is whether the network can serve every device that hears it. Adding access points fixes the first and can make the second worse.

Why More Access Points Sometimes Makes Wi-Fi Worse

Wi-Fi devices sharing a channel can’t all talk at once. They take turns, and each one waits for the channel to fall quiet before it sends anything. Put too many access points on the same channel within earshot of each other and every device in that space spends more of its time waiting for a gap than actually sending data.

We’ve visited offices with an access point in nearly every room, all broadcasting on the same three 2.4 GHz channels, performing worse than a properly planned design with a third of the hardware. A survey catches this before the purchase order.

Predictive, Active or Passive: Which Survey Does Your Building Need?

The three survey types answer different questions, and the honest answer for most commercial projects is that you need more than one. Here’s a quick explanation of each:

Predictive survey. Signal behaviour is modelled in software from your floor plan, with wall materials and ceiling heights entered by hand. No site visit is needed, which makes it the right tool for a building that hasn’t been constructed yet, or a fit-out still in the planning phase. Its efficacy depends entirely on how accurately the building is rendered.
Passive survey. The survey device listens without joining any network, recording what it hears as the engineer walks. This is essential for measuring existing coverage and finding interference, including from neighbouring tenants you have no control over.
Active survey. The device associates with the network and measures real performance, including throughput, retransmissions and roaming behaviour. This is how you validate that a deployment performs as the design intended.

A typical sequence on a new build runs predictive first to design it, then active after installation to verify. An existing building with network issues usually starts with a passive survey to reveal what is actually happening before solutions are discussed. Check out our blog post on choosing between an active and a predictive survey for more information.

There is a fourth measurement worth naming separately. A spectrum analysis looks at radio energy that isn’t Wi-Fi at all, which is how you find the microwave, the wireless headset base or the badly shielded motor that has been ruining one corner of the building for years. The most common sources of wireless interference in commercial buildings are more mundane than most people expect.

What’s Inside a Professional Survey Toolkit?

Free heat mapping apps exist, and they’re useful for showing that a problem exists. They are not what a commercial deployment should be designed on, however, because a laptop’s built-in Wi-Fi adapter measures the world the way that one laptop sees it. A professional survey adds two things a laptop cannot provide on its own:

Design and analysis software. Ekahau AI Pro is the platform we design in. Floor plans are imported, wall materials assigned, access points placed and moved, and coverage modelled before anything is mounted. The same software ingests the walk-around measurements afterwards and produces the heat maps.

A dedicated survey device. Ekahau Sidekick 2 is a purpose-built measurement unit rather than a laptop radio. It carries its own radios and spectrum analysis hardware, so it can survey multiple bands and see non-Wi-Fi interference in the same pass.

The tools matter less than how they’re used. Software should not decide where an access point belongs. An engineer should, using what the measurements say about your building and where those access points land, drive both performance and security.

What Do You Receive When the Survey is Done?

This is the question that separates a real survey from a screenshot, and it is the one buyers most often forget to ask. A survey deliverable worth the cost includes:

Annotated heat maps for each measured layer on your floor plan, not just signal strength.
An access point placement plan with mounting locations, heights and orientation, specific enough for an installer to work from.
A channel and power plan so the design doesn’t compete with itself or with the tenant next door.
A cabling schedule, because every access point needs a cable run and the structured cabling behind them is usually the long-pole item in the schedule.
Findings and constraints in writing, including anything discovered on site that changes the assumptions.
A validation survey after installation, proving the built network matches the design.

If a quote doesn’t say which of these you receive, ask before signing a work order. A heat map with no placement plan is a picture, not a design.

How Much Does a Wireless Site Survey Cost?

Cost is driven by how much walking the survey requires and how much has to be proven, not by square footage alone. These variables impact a quote:

Floor area and number of floors. Each floor is a separate survey pass.
Ceiling height and construction. Concrete, foil-backed insulation, firewalls and freezer panels all absorb signal, and high ceilings change where access points can physically go.
Building type. A 40,000 square foot open office and a 40,000 square foot warehouse with racking, mezzanines and moving inventory are not equivalent work.
Survey type. A predictive design is desk work. A passive walk plus an active validation pass means two site visits.
Occupancy. Surveying an occupied building around its working hours costs more than an empty shell.
Density requirements. Proving a space supports 300 concurrent devices takes more measurement than proving a signal reaches the back office.

Seven Signs Your Building Needs a Survey Before Adding More Access Points

Coverage is fine at the desk and collapses in the same three spots every day. Persistent dead zones in an office rarely fix themselves.
Devices hold onto an access point long after you have walked away from it.
Wi-Fi degrades at a predictable time, usually when the building fills up.
A previous fix was to add access points, and it helped less than expected.
Handheld scanners, payment terminals or voice handsets drop sessions that laptops do not.
The building changed. New walls, new racking, a new tenant upstairs, a new freezer.
Nobody can produce a channel plan or a record of where the current access points are.

Any two of these justify a survey. Number four justifies one on its own.

From Heat Map to Access Point Plan

A survey is only worth the cost if it changes what gets installed.

The ideal process should: measure the building, identify where coverage and capacity fall short, model a design that fixes both, place access points against real mounting constraints, plan cabling, install, then survey again to confirm the design held.

That last step is the one most often skipped, yet it’s arguably the most important. A validation survey after installation is what turns a design into a documented outcome you can hold a contractor to.

Wi-Fi problems are rarely mysterious once someone measures them. If your building has a dead zone that keeps coming back, or you are about to buy access points and want to know how many you actually need, ExcelLinx Communications runs wireless site surveys across Toronto and the GTA using Ekahau AI Pro and Sidekick 2, with nationwide coverage for multi-site rollouts.

Book a wireless site survey or call 647-362-1979.

Frequently Asked Questions

How do you do a site survey for wireless?

An engineer imports your floor plan, then walks the building with a survey device recording signal strength, noise, channel usage and interference at hundreds of points. The software maps those readings onto the plan, and the engineer uses them to design access point placement, channels and power levels.

What is the purpose of a wireless site survey?

The purpose is to decide how many access points a building needs and exactly where they go, based on measured signal behaviour rather than estimates. It prevents both under-coverage and the more expensive problem of too many access points interfering with each other.

How much does a WiFi site survey cost?

Cost depends on floor area, number of floors, ceiling height, building construction, whether the space is occupied, and which survey types are included. A predictive design costs less than a passive walk-through plus an active validation pass, because the latter requires site visits.

What is the best free tool for surveying WiFi sites?

Free tools are useful for confirming a problem exists, but they measure through a laptop’s built-in adapter and cannot see non-Wi-Fi interference. For a commercial deployment where hardware and cabling budgets depend on the result, a dedicated survey device and design software produce measurements you can build from.

Can a wireless site survey be done remotely?

A predictive survey can be produced remotely from floor plans and construction details, which is genuinely useful for buildings still in design. It cannot replace on-site measurement in an existing building, because it models the walls you tell it about rather than the ones that are there.
